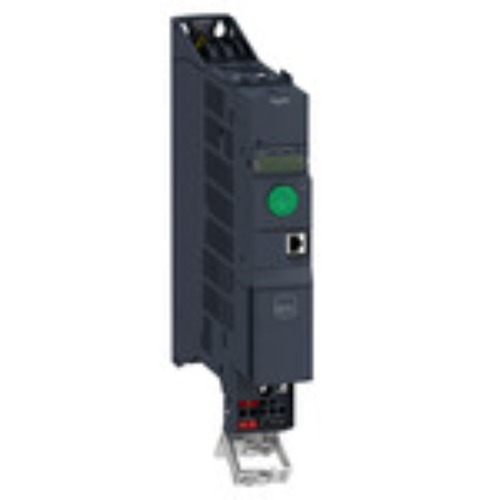

ATV320U07N4B Schneider Electric variable speed drive, ATV320, 0.75 kW, 380…500 V, 3 phases, book

Maximizing Panel Space with the ATV320U07N4B Schneider Electric variable speed drive

The ATV320U07N4B Schneider Electric variable speed drive is a state-of-the-art motor controller from the Altivar 320 series, engineered specifically for modern, high-density machine designs. This 0.75 kW drive combines a remarkably narrow “Book” form factor with the advanced safety and communication features required for complex machinery. It is the perfect solution for applications with multiple drives in a single cabinet, such as conveying systems, packaging lines, and textile machines, where panel space is a critical resource.

The “Book” Form Factor Advantage of the ATV320U07N4B Schneider Electric variable speed drive

The standout feature of the ATV320U07N4B Schneider Electric variable speed drive is its innovative “Book” style design. This slim profile allows for direct side-by-side mounting with minimal to no ventilation clearance, enabling a significant reduction in control panel width and overall cost. This is a game-changer for machine builders creating modular or multi-axis systems. This incredible space efficiency is paired with high-end integrated features, including Safe Torque Off (STO), which simplifies safety circuit design, and dual communication ports, making this compact drive a powerhouse of functionality.

High-Performance Control and Robust Reliability

Despite its small size, the ATV320U07N4B Schneider Electric variable speed drive delivers the powerful performance and robust quality Schneider Electric is known for. It provides high-performance flux vector control for both asynchronous (induction) and synchronous motors, ensuring precise speed and torque regulation for even the most delicate tasks. Built for a long service life in demanding industrial environments, its printed circuit boards are conformally coated to protect against dust and moisture, guaranteeing operational reliability.

Key Features and Design Benefits of the ATV320U07N4B Schneider Electric variable speed drive

The ATV320U07N4B Schneider Electric variable speed drive is equipped with a comprehensive feature set designed to optimize modern machinery:

• Space-Saving “Book” Form Factor: Enables high-density mounting in control cabinets, drastically reducing panel size and cost.
• Integrated Safety: Standard Safe Torque Off (STO) function enhances machine and personnel safety while reducing wiring complexity.
• Advanced Connectivity: Comes with dual integrated communication ports for Modbus and CANopen, providing versatile networking options.
• High-Performance Motor Control: Optimized algorithms deliver precise and efficient control for low-power motors.
• Durable Construction: Coated circuit boards ensure reliability and a long operational life in challenging conditions.
• Three-Phase Power: Designed for standard 380-500V three-phase industrial power systems.

Certifications, Compliance, and Compatibility

The ATV320U07N4B Schneider Electric variable speed drive is developed and manufactured to comply with the highest international standards. It holds major certifications, including CE, UL, CSA, RCM, and EAC. The integrated STO safety function is certified according to IEC 61508 SIL 3, ensuring it is suitable for safety-critical applications.

Technical Specifications

Product Attributes

• Brand: Schneider Electric
• Series: Altivar 320
• Model Number: ATV320U07N4B
• Power: 0.75 kW (1 hp)
• Voltage: 380-500V
• Phase: Three-Phase Input / Three-Phase Output
• Technology Type: Variable Speed Drive (VFD)
• Form Factor: Book
