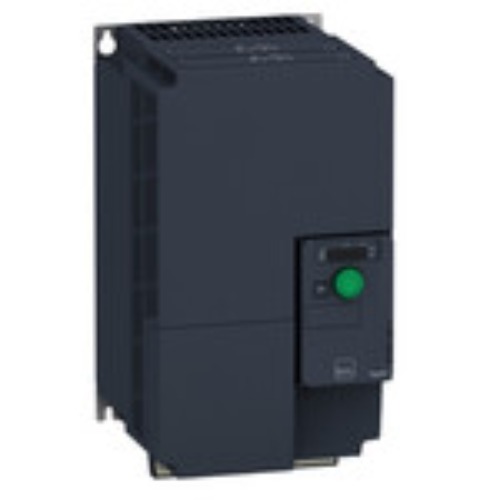

ATV320D15N4C Schneider Electric variable speed drive, ATV320, 15 kW, 380…500 V, 3 phases, compact

Empowering Complex Machines with the ATV320D15N4C Schneider Electric variable speed drive

The ATV320D15N4C Schneider Electric variable speed drive is a state-of-the-art motor controller from the advanced Altivar 320 series, engineered to enhance the performance and safety of modern industrial machinery. This powerful 15 kW drive provides a sophisticated, yet user-friendly solution for controlling both asynchronous and synchronous motors. Its combination of a compact design, integrated safety functions, and versatile connectivity makes it the superior choice for demanding applications in packaging, material handling, hoisting, and textiles.

Why the ATV320D15N4C Schneider Electric variable speed drive is the Future of Machine Control

The ATV320D15N4C Schneider Electric variable speed drive is designed to be a cornerstone of automated systems, offering features that simplify machine design while increasing safety and efficiency. Its most significant advantage is the inclusion of the Safe Torque Off (STO) safety function as a standard feature. This allows machine builders to achieve a high level of safety integrity (SIL 3) without the complexity and cost of external safety relays. Furthermore, the drive comes equipped with dual communication ports, supporting Modbus and CANopen natively, which provides exceptional flexibility for integration into various control system architectures.

Uncompromising Performance and Robust Reliability

Built to the high-quality standards of Schneider Electric, the ATV320D15N4C Schneider Electric variable speed drive delivers exceptional motor control performance. Its advanced control algorithms provide precise speed and torque regulation, which is essential for improving process quality and throughput. The drive is constructed for durability in tough industrial environments; its printed circuit boards are conformally coated to protect against dust, humidity, and other corrosive elements, ensuring a long and reliable operational life. The compact form factor is a key design benefit, allowing for optimized use of space within control cabinets.

Key Features and Design Benefits of the ATV320D15N4C Schneider Electric variable speed drive

The ATV320D15N4C Schneider Electric variable speed drive is equipped with an impressive array of features to meet the needs of advanced machine builders:

• Compact Footprint: The “Compact” design minimizes panel space, allowing for more efficient and cost-effective machine layouts.
• Integrated Safety: Features Safe Torque Off (STO) as standard, simplifying the design of safety circuits and enhancing personnel protection.
• Advanced Connectivity: Dual integrated ports for Modbus and CANopen allow for flexible and powerful networking capabilities.
• High-Performance Motor Control: Optimized for both induction (asynchronous) and permanent magnet (synchronous) motors, offering greater application flexibility.
• Built to Last: Robust design with coated circuit boards ensures long-term reliability in challenging industrial settings.
• Easy Integration: Simplified commissioning through Schneider Electric’s SoMove software and various HMI options.

Certifications, Compliance, and Compatibility

The ATV320D15N4C Schneider Electric variable speed drive is developed in compliance with the most stringent global standards for safety and performance. It holds major certifications including CE, UL, CSA, RCM, and EAC. Its integrated safety functions are certified to IEC 61508 SIL 3, making it suitable for safety-critical machine applications.

Technical Specifications

Product Attributes

• Brand: Schneider Electric
• Series: Altivar 320
• Model Number: ATV320D15N4C
• Power: 15 kW (20 hp)
• Voltage: 380-500V
• Phase: Three-Phase Input / Three-Phase Output
• Technology Type: Variable Speed Drive (VFD)
• Safety Function: Safe Torque Off (STO)
