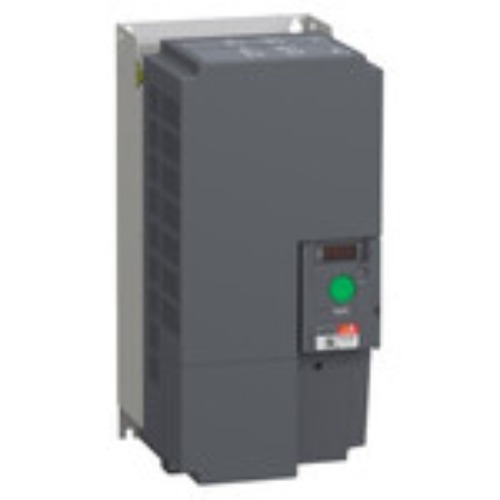

ATV310HD22N4E variable speed drive, Easy Altivar 310, 22kW, 30hp, 380…460V, 3 phase, without filter

Optimizing Industrial Machinery with the ATV310HD22N4E variable speed drive

For industrial processes that demand robust and efficient motor control, the Schneider Electric ATV310HD22N4E variable speed drive provides an exceptional solution. As a key component of the proven Altivar 310 series, this 22 kW drive is designed to manage asynchronous motors with precision and reliability. It serves as a significant upgrade over conventional motor starters, delivering enhanced control, superior equipment protection, and tangible energy savings for applications such as conveyors, pumps, fans, and packaging machines.

Why the ATV310HD22N4E variable speed drive is the Professional’s Choice

The ATV310HD22N4E variable speed drive distinguishes itself through a design philosophy centered on durability and simplicity. It is built to perform in the toughest industrial settings, capable of operating flawlessly in ambient temperatures up to 55°C without needing to be derated. This resilience is achieved through its advanced cooling architecture and specially coated printed circuit boards that protect against dust and humidity. Its compact, book-style enclosure allows for space-saving side-by-side installation in control cabinets, while the integrated Modbus communication protocol ensures it can be easily networked into a wider automation system from day one.

Uncompromising Performance, Quality, and Reliability

Schneider Electric’s commitment to quality is evident in the ATV310HD22N4E variable speed drive. It delivers precise motor control through its sensorless vector control mode, which optimizes torque and speed regulation even under changing loads. Commissioning is streamlined and fast, thanks to its intuitive “jog dial” navigation and a clear, simple display, allowing for quick setup without extensive training. Furthermore, a comprehensive set of protection functions—including thermal, overcurrent, and phase loss protection—continuously guards both the drive and the motor, ensuring maximum uptime and extending the lifespan of your entire system.

Key Features and Design Benefits of the ATV310HD22N4E variable speed drive

The ATV310HD22N4E variable speed drive is engineered with features that deliver immediate value and long-term performance:

• High Power and Performance: Provides 22 kW / 30 hp of power for demanding applications.
• Robust Construction: Designed to withstand harsh industrial environments, including high temperatures and vibration.
• Space-Saving Design: The compact format allows for efficient and simple installation in crowded control panels.
• User-Friendly Interface: Enables quick and easy commissioning and parameter adjustment.
• Integrated Modbus Communication: Features a standard RS485 port for seamless integration with PLCs and control networks.
• Comprehensive Protection: Offers extensive built-in safeguards for the drive, motor, and machinery.

Certifications, Compliance, and Compatibility

The ATV310HD22N4E variable speed drive is manufactured to meet rigorous international standards for safety and performance. It carries key certifications such as CE, UL, CSA, RCM, and EAC. The drive is compliant with global standards including IEC 61800-5-1 and IEC 61800-3, and features an integrated Class C3 EMC filter to mitigate electromagnetic interference, ensuring reliable operation in diverse industrial settings.

Technical Specifications

Product Attributes

• Brand: Schneider Electric
• Series: Altivar 310
• Model Number: ATV310HD22N4E
• Power: 22 kW (30 hp)
• Voltage: 380-460V
• Phase: Three-Phase Input / Three-Phase Output
• Technology Type: Variable Speed Drive (VFD)
• IP Rating: IP20
