The PowerSafe EnerSys OPzV series is based on tubular plate technology combined with a gel electrolyte, delivering excellent deep cycle capabilities, superior durability, and enhanced resistance to harsh environmental conditions. These batteries are ideal for off-grid solar systems, UPS installations, and other demanding energy storage needs.

Among the top-performing models, the 10 OPzV 1000 battery provides a robust energy solution, offering a nominal capacity of 1000 Ah (C10 rate) and ensuring a long service life of up to 20 years under floating charge conditions.

Key Features and Attributes of EnerSys OPzV Batteries

• Technology: Valve Regulated Lead Acid (VRLA) with Tubular Gel Technology (OPzV Type)

• Maintenance-Free: No water refilling required throughout the battery life

• Design Life: 20 years at 20°C (68°F) under float charge

• Capacity Range: 200 Ah to over 3000 Ah, with 10 OPzV 1000 offering 1000 Ah capacity

• High Cycling Ability: More than 3000 cycles at 50% Depth of Discharge (DOD)

• Construction: Robust tubular positive plates ensure excellent cycle stability and mechanical strength

• Electrolyte: Fixed gel electrolyte prevents acid stratification and leakage

• Temperature Tolerance: Wide operating temperature range (-20°C to +50°C)

• Safety: Equipped with self-sealing valves for superior gas recombination efficiency (>95%)

• Installation: Suitable for both horizontal and vertical installation

• Standards: Manufactured according to international standards such as IEC 60896-21/22

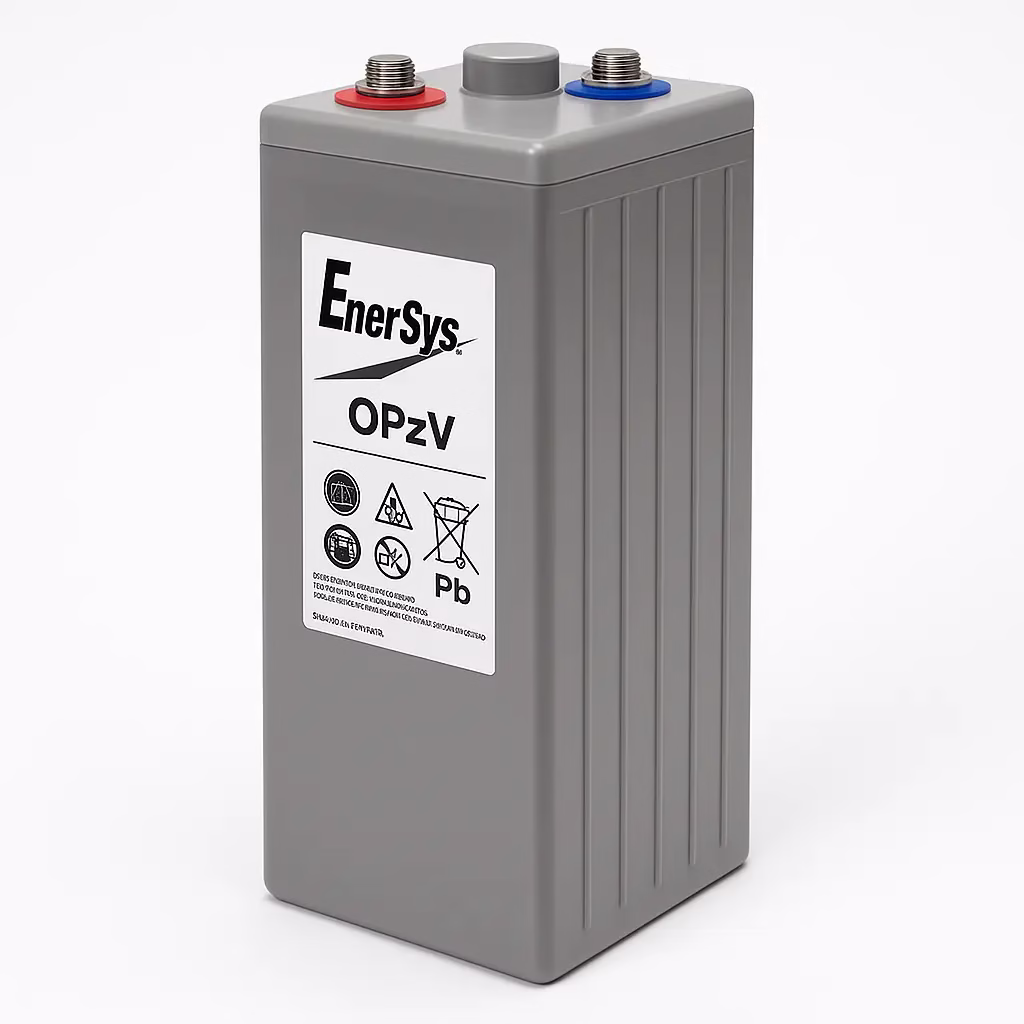

About 10 OPzV 1000 Battery

The 10 OPzV 1000 model from EnerSys OPzV family is engineered for medium to large capacity energy storage applications. It features:

• Nominal Voltage: 2V per cell

• Capacity: 1000 Ah @ C10 (1.80 V/cell at 20°C)

• Dimensions: Compact footprint ideal for modular designs

• Weight: Optimized for easier handling while maintaining robustness

• Application Areas: Renewable energy (solar, wind), UPS backup systems, railway, industrial standby, and telecom towers

The 10 OPzV 1000 offers exceptional float and cyclic life, ensuring your systems remain powered even in challenging conditions.

✅ Notes:

• Voltage: Each cell is 2V.

• Technology: Valve-Regulated Lead Acid (VRLA) with Tubular Gel.

• Design Life: 20 years at 20°C ambient temperature.

• Applications: Solar systems, Telecom BTS, UPS, Railway signaling, Industrial energy backup.

Applications for EnerSys OPzV Batteries

• Renewable Energy Systems: Solar and wind hybrid solutions

• Telecommunications: Base station backup

• Industrial Power Backup: UPS systems, emergency lighting

• Railway Systems: Signal and communication backup

• Off-Grid Power Systems: Rural electrification and remote sites

EnerSys OPzV Battery Attributes

• Battery Type: Valve Regulated Lead Acid (VRLA) with Gel technology

• Plate Design: Tubular positive plates for superior cycle life

• Electrolyte: Immobilized gel electrolyte (no leakage, no stratification)

• Voltage: 2V per cell

• Capacity Range: 200 Ah to 3000 Ah (at C10 rate)

• Design Life: Up to 20 years in float operation at 20°C

• Cycle Life: Over 3000 cycles at 50% Depth of Discharge (DOD)

• Self-Discharge Rate: Extremely low, ideal for long storage periods

• Terminal Type: Bolt-on terminals for easy and secure connection

• Container Material: Durable, flame-retardant ABS (UL94-V0 option available)

• Operating Temperature Range: -20°C to +50°C

• Installation Position: Vertical or horizontal installation possible

• Maintenance Requirements: Maintenance-free (no need for water topping)

• Safety Valve: Equipped with pressure relief valve for enhanced safety

• Gas Recombination Efficiency: Greater than 95%

• Standards Compliance: IEC 60896-21/22, Eurobat Long Life classification

• Vibration Resistance: Excellent mechanical stability for harsh environments

• Environmental Compliance: Fully recyclable and RoHS compliant

• Applications: Renewable energy, UPS, Telecom, Railway signaling, Industrial backup

Why Choose EnerSys OPzV?

With over a century of experience in energy storage, EnerSys delivers premium quality batteries trusted worldwide. The EnerSys OPzV batteries guarantee long life, high safety, and minimal maintenance, offering the best return on investment for critical energy infrastructure.

Whether you need reliable performance for solar installations or industrial backup, 10 OPzV 1000 and the full EnerSys OPzV range are the ideal choices to power your future.
