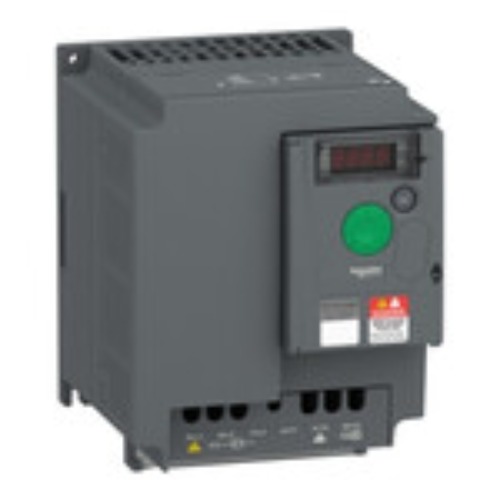

ATV310HU55N4E Schneider Electric variable speed drive ATV310, 5.5 kW, 7.5 hp, 380…460 V, 3 phase, without filter

Empowering Industrial Machinery with the ATV310HU55N4E Schneider Electric variable speed drive

For industrial applications that demand greater power without sacrificing control or reliability, the ATV310HU55N4E Schneider Electric variable speed drive is the definitive solution. As a high-performing model in the acclaimed Altivar 310 series, this 5.5 kW drive is designed to provide precise and efficient control for asynchronous motors. It is perfectly suited for medium-duty applications such as centrifugal pumps, ventilation systems, material handling conveyors, and various other simple industrial machines, delivering superior performance and significant energy savings.

Why the ATV310HU55N4E Schneider Electric variable speed drive Excels in its Class

The ATV310HU55N4E Schneider Electric variable speed drive is engineered to perform reliably in the most demanding conditions. Its design emphasizes robustness, allowing it to operate flawlessly in high ambient temperatures up to 55°C without requiring derating. This exceptional thermal performance, combined with conformally coated circuit boards that resist dust and humidity, ensures a long and dependable service life. The drive’s compact “book” form factor allows for efficient side-by-side mounting, optimizing space in control cabinets and simplifying installation.

Uncompromising Performance, Quality, and Ease of Use

Reflecting Schneider Electric’s commitment to excellence, the ATV310HU55N4E Schneider Electric variable speed drive delivers consistent, high-quality performance. It employs an advanced sensorless vector control algorithm for precise speed and torque regulation across a wide range of loads. Despite its power, it is remarkably easy to use. Commissioning is fast and intuitive, thanks to a simple navigation dial (jog dial) and a clear, easy-to-read display. With integrated Modbus communication, it is ready for immediate integration into larger automation systems, while its comprehensive protection features ensure the safety of both the motor and the drive.

Key Features and Design Benefits of the ATV310HU55N4E Schneider Electric variable speed drive

The ATV310HU55N4E Schneider Electric variable speed drive is equipped with a host of features designed for optimal performance and integration:

• Powerful and Efficient: Delivers 5.5 kW / 7.5 hp for medium-duty applications while optimizing energy consumption.
• Robust and Durable: Built to withstand harsh industrial environments, ensuring maximum uptime.
• Space-Saving Design: The compact footprint allows for high-density installation in control panels.
• Simple Commissioning: An intuitive interface allows for quick setup and parameterization, reducing installation time.
• Integrated Communications: A standard RS485 port with Modbus protocol ensures easy connectivity.
• Comprehensive Protection: Features a full suite of safeguards for the drive and motor to prevent damage and downtime.

Certifications, Compliance, and Compatibility

The ATV310HU55N4E Schneider Electric variable speed drive is manufactured in adherence to the strictest international standards for quality and safety. It holds major certifications, including CE, UL, CSA, RCM, and EAC. The drive complies with standards like IEC 61800-5-1 and includes an integrated Class C3 EMC filter to minimize electromagnetic interference, making it a reliable choice for any industrial environment.

Technical Specifications

Product Attributes

• Brand: Schneider Electric
• Series: Altivar 310
• Model Number: ATV310HU55N4E
• Power: 5.5 kW (7.5 hp)
• Voltage: 380-460V
• Phase: Three-Phase Input / Three-Phase Output
• Technology Type: Variable Speed Drive (VFD)
• IP Rating: IP20
