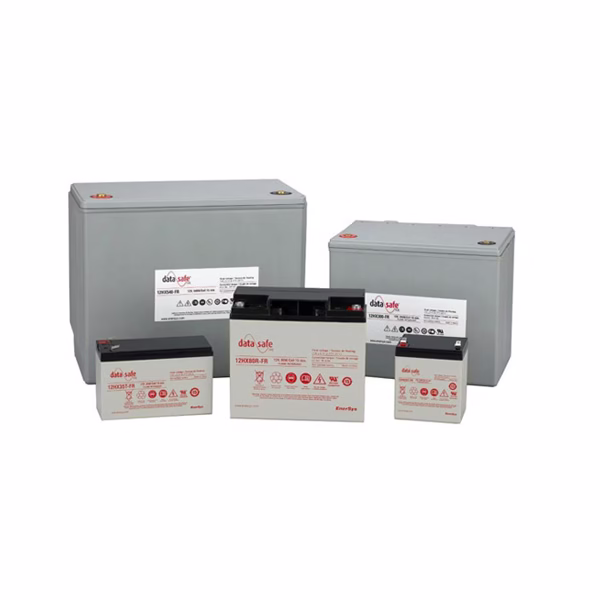

EnerSys DataSafe HX – 12HX540 Battery
12.500,00 EGP
EnerSys DataSafe® HX batteries are specially designed to meet the growing demands of high rate uninterruptible power supply (UPS) applications. These premium Valve Regulated Lead Acid (VRLA) batteries deliver superior high-power performance, space efficiency, and long operational life—making them ideal for mission-critical environments such as data centers, banking, telecom networks, and industrial backup systems.
EnerSys DataSafe HX & Datasafe HX Plus
EnerSys DataSafe® HX batteries are specially designed to meet the growing demands of high rate uninterruptible power supply (UPS) applications. These premium Valve Regulated Lead Acid (VRLA) batteries deliver superior high-power performance, space efficiency, and long operational life—making them ideal for mission-critical environments such as data centers, banking, telecom networks, and industrial backup systems.
Datasafe HX Technical Specifications
| Feature | Details |
|---|---|
| Battery Type | Valve Regulated Lead Acid (VRLA), Absorbed Glass Mat (AGM) |
| Nominal Voltage | 12V |
| Capacity Range | 51Ah – 580Ah (15-minute rate to 1.67 VPC at 25°C) |
| Design Life | 10 years at 25°C (77°F) |
| Float Voltage | 2.25 – 2.30 VPC at 25°C |
| Operating Temperature | -15°C to +50°C (Recommended: +20°C to +25°C) |
| Case Material | Flame-retardant ABS (UL94 V-0 optional) |
| Venting | Self-regulating relief valve with flame arrestor |
| Compliance | UL recognized, ISO 9001 & ISO 14001 certified |
| Country of Origin | Manufactured in the USA and Europe |
Datasafe HX Plus Range
| Model | Voltage | 15-min Rate (Ah) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| Datasafe HX 12HX25 | 12V | 51 | 279 | 107 | 254 | 16.3 |
| Datasafe HX 12HX35 | 12V | 100 | 394 | 110 | 285 | 30.2 |
| Datasafe HX 12HX50 | 12V | 150 | 394 | 110 | 285 | 41.5 |
| Datasafe HX 12HX80 | 12V | 205 | 527 | 125 | 240 | 58.0 |
| Datasafe HX 12HX105 | 12V | 300 | 561 | 125 | 316 | 79.0 |
| Datasafe HX 12HX100S | 12V | 400 | 561 | 125 | 316 | 93.0 |
| Datasafe HX 12HX135 | 12V | 580 | 561 | 125 | 316 | 118.0 |
Product Attributes
| Attribute | Description |
|---|---|
| High Power Density | Delivers superior energy in minimal footprint |
| AGM Technology | Ensures no electrolyte spillage or maintenance |
| Long Design Life | 10-year design life reduces replacement cost |
| Fast Recharge Capability | Ideal for quick UPS readiness |
| Flame Retardant Casing | Ensures extra safety in critical installations |
| Front Terminal Design | Easy access and installation in racks |
| Global Manufacturing | Made in USA and Europe under strict quality standards |
Applications for Datasafe batteries
Uninterruptible Power Supply (UPS) systems
Data centers & Server rooms
Telecommunication infrastructure
Industrial process control systems
Banking & Financial institutions
Medical and healthcare equipment
Oil & Gas and utility substations
Why Choose EnerSys DataSafe® HX from EnergyX Egypt?
At EnergyX Egypt, we are the authorized agent and trusted supplier of EnerSys batteries in Egypt. We offer:
Genuine EnerSys products with factory warranty
Technical consultation for battery sizing & system design
Professional installation and after-sales support
Immediate stock availability for urgent projects
Additional Information
Ready stock available in Egypt
Custom battery cabinet solutions on request
Compatible with major UPS brands like Schneider, K-Star, Emerson, and more
| Weight | 53 kg |
|---|---|
| Dimensions | 40 × 40 × 30 cm |
| Battery Type | VRLA, AGM (Absorbed Glass Mat) |
| Construction | Flame-retardant ABS casing (UL94 V-0 optional) |
| Terminal Design | Front access, copper alloy insert terminals |
| Temperature Range | -15°C to +50°C (optimum at 25°C) |
| Safety Certifications | UL1989, CE compliant, ISO 9001 certified |
| Installation Orientation | Upright, side, or end-terminal mountable |
| Float Voltage | 2.25–2.30 VPC |
| Shelf Life | 2 Years or 6 Months for some ranges |
