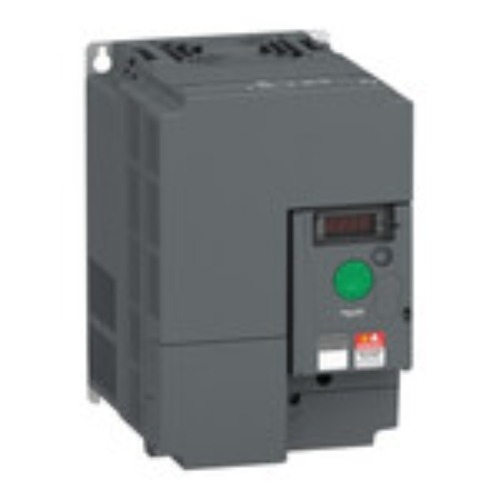

ATV310HU75N4E variable speed drive, Easy Altivar 310, 7.5kW, 10hp, 380…460V, 3 phase, without filter

Delivering Power and Precision with the ATV310HU75N4E variable speed drive

For industrial applications requiring significant power combined with precise control, the Schneider Electric ATV310HU75N4E variable speed drive is an exceptional choice. As a key model in the highly reliable Altivar 310 series, this 7.5 kW drive is engineered to manage asynchronous motors in demanding environments. It provides a cost-effective, high-performance solution for a wide range of machinery, including large pumps, ventilation fans, compressors, and material handling systems, where efficiency and uptime are critical.

why the ATV310HU75N4E variable speed drive is the Superior Choice

The ATV310HU75N4E variable speed drive stands out in the market due to its focus on durability and ease of use, even at higher power ratings. It is designed to withstand the rigors of industrial settings, capable of operating at peak performance in ambient temperatures up to 55°C without derating. This thermal resilience, combined with conformally coated circuit boards that protect against humidity and dust, ensures a long and reliable service life. Its compact, “book-style” design allows for efficient, side-by-side mounting in control panels, saving space and simplifying the overall system layout.

Unmatched Performance, Quality, and Reliability

Built with Schneider Electric’s globally recognized commitment to quality, the ATV310HU75N4E variable speed drive guarantees consistent and powerful performance. It utilizes an advanced sensorless vector control algorithm to provide excellent speed regulation and high torque, even at low speeds. Despite its power, the drive is designed for fast and simple commissioning. The intuitive user interface, featuring a navigation “jog dial” and a clear 4-digit display, allows for quick setup and adjustments. With integrated Modbus communication, it is ready to be networked into a larger control system right out of the box.

Key Features and Design Benefits of the ATV310HU75N4E variable speed drive

The ATV310HU75N4E variable speed drive is equipped with a range of features designed to maximize performance and reliability:

• High Power Output: Delivers 7.5 kW / 10 hp for demanding industrial applications.
• Robust and Resilient: Engineered to perform reliably in harsh environments with high temperatures and contaminants.
• Space-Efficient Design: The compact format simplifies installation and saves valuable panel space.
• User-Friendly Commissioning: An intuitive interface allows for quick setup, minimizing machine downtime.
• Integrated Modbus Communication: Features a standard RS485 port for easy integration with PLCs and automation systems.
• Comprehensive Protection: A full suite of protective functions for the motor and drive ensures safe and long-lasting operation.

Certifications, Compliance, and Compatibility

The ATV310HU75N4E variable speed drive is manufactured to comply with the strictest international safety and performance standards. It holds key certifications, including CE, UL, CSA, RCM, and EAC. It conforms to global standards such as IEC 61800-5-1 and includes an integrated Class C3 EMC filter to mitigate electromagnetic interference, ensuring dependable operation in a variety of industrial settings.

Technical Specifications

Product Attributes

• Brand: Schneider Electric
• Series: Altivar 310
• Model Number: ATV310HU75N4E
• Power: 7.5 kW (10 hp)
• Voltage: 380-460V
• Phase: Three-Phase Input / Three-Phase Output
• Technology Type: Variable Speed Drive (VFD)
• IP Rating: IP20
