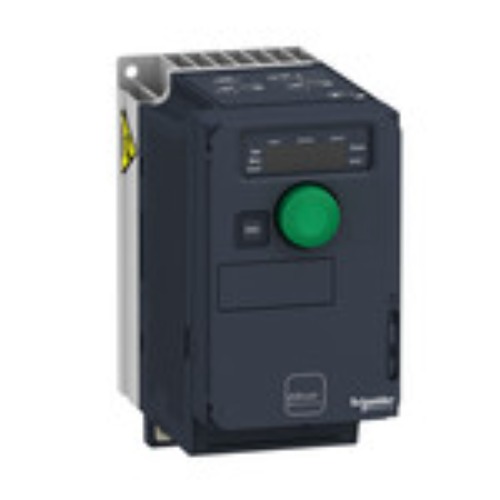

ATV320U02M2C Schneider Electric variable speed drive, ATV320, 0.18 kW, 200…240 V, 1 phase, compact

Precision Control for Compact Machinery with the ATV320U02M2C Schneider Electric variable speed drive

The ATV320U02M2C Schneider Electric variable speed drive is a highly capable and compact motor controller from the advanced Altivar 320 series. It is ingeniously designed to run efficient three-phase motors using a standard single-phase 200-240V power supply. This 0.25 kW drive brings high-performance features, including integrated safety and advanced communication, to the micro-automation space, making it a perfect solution for small conveyors, mixers, pumps, and other compact, high-performance machinery.

Why the ATV320U02M2C Schneider Electric variable speed drive is a Game-Changer

The ATV320U02M2C Schneider Electric variable speed drive solves a common engineering challenge: how to leverage the benefits of a three-phase motor in environments where only single-phase power is available. This makes it an invaluable tool for small workshops, commercial applications, and original equipment manufacturers (OEMs). Beyond this core capability, it stands out by incorporating features typically found in much larger drives. The standard Safe Torque Off (STO) function enhances machine safety and simplifies compliance, while dual integrated communication ports for Modbus and CANopen provide unparalleled connectivity for a drive of this size.

High-Performance, Reliability, and a Compact Design

Despite its small footprint, the ATV320U02M2C Schneider Electric variable speed drive delivers the robust performance and quality expected from Schneider Electric. It provides advanced motor control algorithms for both asynchronous and synchronous motors, ensuring smooth and precise operation across the entire speed range. Built for durability, its printed circuit boards are conformally coated for protection against harsh industrial environments, ensuring a long and reliable service life. Its ultra-compact “Compact” form factor allows for extremely flexible mounting options, even in the most space-constrained applications.

Key Features and Design Benefits of the ATV320U02M2C Schneider Electric variable speed drive

The ATV320U02M2C Schneider Electric variable speed drive is engineered with a powerful set of features for modern machine control:

• Single-Phase Input: Enables the use of efficient and robust 200-240V three-phase motors on a single-phase supply.
• Ultra-Compact Footprint: One of the smallest drives on the market, ideal for integration into tight spaces.
• Integrated Safety: Features Safe Torque Off (STO) as standard, reducing the need for external safety components and simplifying machine design.
• Advanced Connectivity: Dual communication ports for Modbus and CANopen are integrated for easy networking.
• High-Performance Motor Control: Delivers precise speed and torque regulation for improved process quality.
• Durable and Reliable: Coated circuit boards ensure long-term performance in demanding conditions.

Certifications, Compliance, and Compatibility

The ATV320U02M2C Schneider Electric variable speed drive is manufactured in compliance with the highest international safety and quality standards. It holds key certifications such as CE, UL, CSA, RCM, and EAC. The integrated safety functions are certified to IEC 61508 SIL 3, making it suitable for safety-relevant applications.

Technical Specifications

Product Attributes

• Brand: Schneider Electric
• Series: Altivar 320
• Model Number: ATV320U02M2C
• Power: 0.25 kW (0.33 hp)
• Input Voltage: 200-240V
• Input Phase: Single-Phase
• Output Phase: Three-Phase
• Safety Function: Safe Torque Off (STO)
