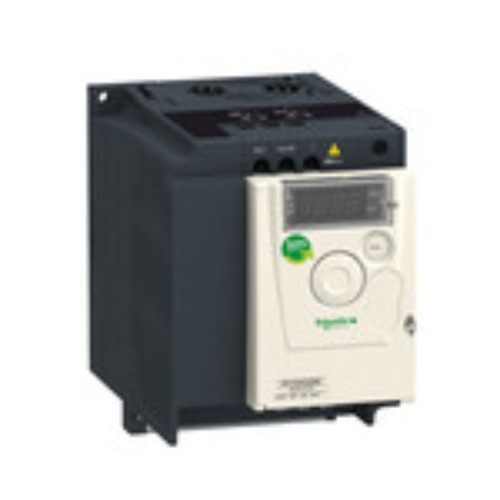

ATV12HU22M2 Schneider Electric

Maximum Power and Control with the ATV12HU22M2 Schneider Electric

The ATV12HU22M2 Schneider Electric stands as the flagship variable speed drive in the Altivar 12 single-phase input series, engineered to deliver an impressive 2.2 kW (3 hp) of power. This drive provides precise and efficient control for three-phase asynchronous motors in applications where only single-phase power is available. It is the perfect solution for more demanding simple machines, including large conveyors, robust pumps, commercial-grade mixers, and woodworking equipment. True to the Altivar 12 philosophy, the ATV12HU22M2 combines this high power capacity with out-of-the-box functionality, ensuring rapid commissioning and seamless integration to boost your operational performance.

Why the ATV12HU22M2 Schneider Electric is the Ultimate Choice

The key advantage of the ATV12HU22M2 Schneider Electric is its ability to run a 3 hp three-phase motor from a standard 200-240V single-phase supply. This capability is invaluable for workshops, remote sites, and commercial buildings that lack three-phase infrastructure. It distinguishes itself by packing this significant power into a remarkably compact frame, maintaining the same physical footprint as the lower-power 1.5 kW model. This space-saving design, combined with Schneider Electric’s globally recognized standard for quality and durability, makes it an unparalleled choice. Its “plug and play” nature simplifies installation, while the integrated Modbus protocol allows for easy connection to broader automation systems.

Uncompromising Performance and Energy Efficiency

Despite its user-friendly design, the ATV12HU22M2 Schneider Electric does not compromise on performance. It employs an advanced sensorless vector control algorithm, ensuring high starting torque and precise speed regulation for consistent and smooth machine operation. This superior control leads to better product quality and reduced mechanical stress on your equipment. Furthermore, this drive is a powerful tool for energy management. By accurately matching motor speed to the application’s load, it can slash energy consumption by up to 30%. This efficiency translates directly into lower electricity bills and a smaller environmental footprint. Built with high-quality components designed for longevity, this drive is a reliable workhorse for your most demanding single-phase applications.

Key Features and Design Benefits of the ATV12HU22M2 Schneider Electric

The ATV12HU22M2 Schneider Electric is equipped with features that deliver powerful performance and maximum convenience:

• High Power Single-Phase Input: The top-of-the-line 2.2 kW (3 hp) rating in its class, perfect for demanding applications without three-phase power.
• Space-Efficient Design: A compact footprint allows for flexible installation even in crowded control panels.
• Integrated EMC Filter: Includes a built-in Class C1 EMC filter to minimize electromagnetic emissions and ensure reliable operation.
• Rapid Commissioning: Designed for quick and easy setup, getting your machine running in minutes.
• Intuitive Interface: A simple navigation dial and clear display make parameter setting and diagnostics effortless.
• Built-in Modbus: Standard Modbus communication for straightforward integration into control networks.
• Robust Thermal Performance: Engineered to operate at full capacity in ambient temperatures up to 50°C without derating.

Global Certifications and Compliance

Operate with confidence knowing the ATV12HU22M2 Schneider Electric meets rigorous international safety and performance standards. It holds key certifications including CE, UL, CSA, C-Tick, and NOM, making it suitable for global deployment.

📊 Technical Specifications

🔧 Product Attributes

• Brand: Schneider Electric
• Model Number: ATV12HU22M2
• Voltage: 200-240V
• Power Rating: 2.2 kW / 3 HP
• Technology Type: Variable Speed Drive (VFD)
• Warranty Period: 18 Months
• Country of Origin: Indonesia
