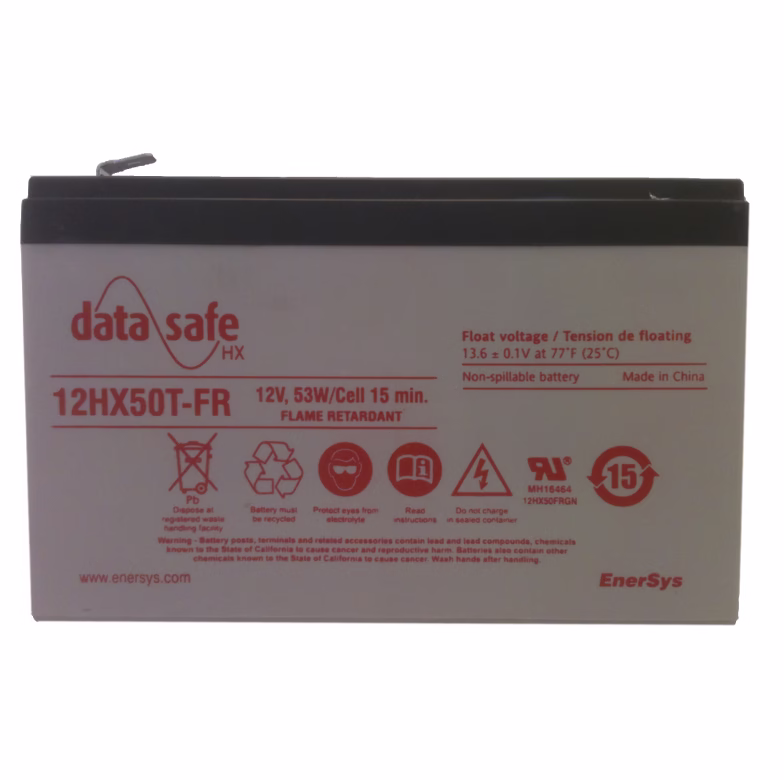

The EnerSys DataSafe HX 12HX50 is a high-rate, sealed VRLA battery designed to meet the demanding power backup needs of mission-critical applications. Engineered with advanced Thin Plate Pure Lead (TPPL) technology, it delivers consistent, reliable power for systems requiring short-duration, high-rate discharge.
With a nominal voltage of 12V and a 15-minute rate capacity of 50 watts per cell, this battery is ideal for use in Uninterruptible Power Supply (UPS) systems, data centers, telecom networks, and emergency backup systems. It offers exceptional power density in a compact footprint and features a UL94 V-0 flame-retardant case, making it a safe and dependable choice.
Its sealed, maintenance-free design simplifies installation and long-term operation. The 12HX50 supports both vertical and horizontal mounting, adding flexibility for integration into tight or custom battery enclosures.
🔍 Key Features:
-
High power density – 50W/cell @ 15 min rate
-
Thin Plate Pure Lead (TPPL) for superior reliability
-
Maintenance-free valve regulated lead acid (VRLA) design
-
UL94 V-0 flame-retardant ABS casing
-
Long service life – up to 10 years design life
-
Low internal resistance for high-rate discharges
-
Wide operating temperature range (-15°C to +50°C)
-
Compliant with UL, CE, ISO 9001 and ISO 14001
🏭 Applications:
-
Data Centers and Server Rooms
-
Uninterruptible Power Supply (UPS) Systems
-
Telecommunications and Network Infrastructure
-
Financial Institutions and ATMs
-
Emergency Lighting and Backup Power
-
Industrial Controls and Automation
-
Medical and Laboratory Equipment
📏 Technical Specifications:
| Attribute | Value |
|---|---|
| Nominal Voltage | 12V |
| Capacity | 50W/cell (15 min rate @1.67V) |
| Dimensions (L x W x H) | 197 x 165 x 170 mm |
| Weight | 14.5 kg (approx.) |
| Terminal Type | M6 threaded copper insert |
| Case Material | ABS Flame-Retardant (UL94 V-0) |
| Float Voltage | 2.27 – 2.30 V/cell |
| Operating Temperature | –15°C to +50°C |
| Design Life | Up to 10 years (25°C) |
🏷️ Additional Information :
-
Voltage: 12V
-
Capacity: 50W per cell (15min rate)
-
Technology: VRLA, TPPL
-
Weight: 14.5 kg
-
Dimensions: 197 x 165 x 170 mm
-
Case: UL94 V-0 flame retardant
-
Design Life: 10 years
-
Brand: EnerSys
-
Model: DataSafe HX 12HX50
