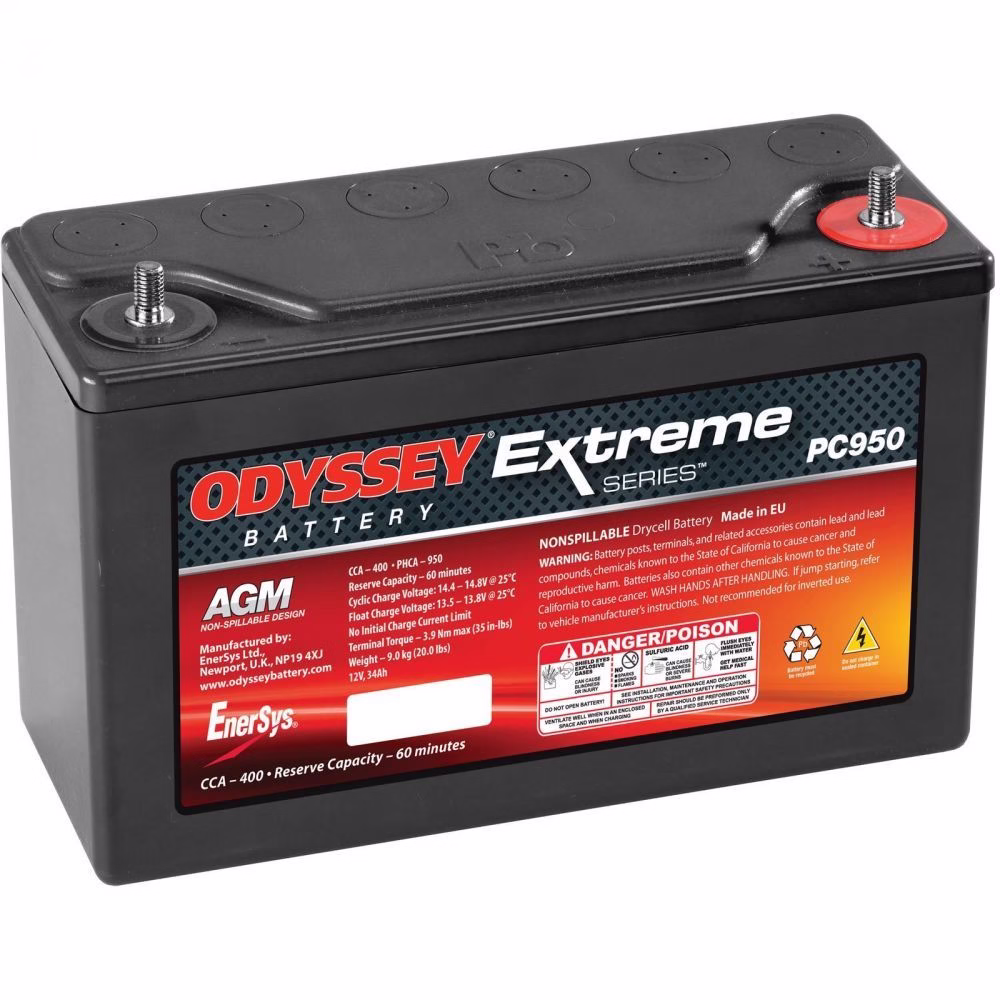

Unmatched Power and Durability: The EnerSys Odyssey PC950 ODS-AGM30E
The EnerSys Odyssey PC950 ODS-AGM30E sets a new standard for high-performance batteries, providing concentrated, dual-purpose power for the most demanding applications. Whether you’re navigating the racetrack, exploring the wilderness on a motorbike, or powering marine equipment, the ODS-AGM30E delivers the reliability and service life you need. It combines the functions of two separate batteries into one, offering massive starting power and exceptional deep-cycle recovery.
Why the ODS-AGM30E (PC950) Outperforms the Competition
ODYSSEY® batteries stand apart from conventional designs by leveraging advanced Thin Plate Pure Lead (TPPL) technology. Unlike other batteries that may use recycled lead, the ODS-AGM30E is constructed with 99% pure virgin lead plates. This unique manufacturing process allows for more plates to be fitted into the battery, resulting in significantly higher power density, faster recharge acceptance, and a much longer service life. This TPPL design, combined with super-high-grade materials, delivers up to twice the power and three times the life of standard batteries, giving you unparalleled value and peace of mind.
Performance and Quality of the EnerSys Odyssey ODS-AGM30E (PC950)
Engineered to withstand the toughest conditions, the EnerSys Odyssey PC950 ODS-AGM30E is built for extreme performance. It can deliver engine-cranking pulses up to 950 amps for five seconds and handle up to 900 charge-discharge cycles at a 50% depth of discharge. Its operational integrity is maintained across a wide temperature range, from a freezing -40°C (-40°F) to a hot +45°C (+113°F). This resilience ensures you have reliable power when you need it most, long after other batteries would have failed. The robust construction provides extreme protection against high-impact shocks and vibration, a common challenge in motorsports and off-road environments.
Key Features and Design Benefits
The superior design of the ODYSSEY ODS-AGM30E (PC950) is evident in its key features. Its sealed, Absorbed Glass Mat (AGM) design is virtually maintenance-free and never requires watering. Compressed AGM plate separators prevent leaks and provide extreme vibration resistance, allowing the battery to be installed on its side if needed. Furthermore, robust intercell connections are cast and bonded to resist damage from vibration, ensuring a stronger and more reliable internal structure. The M6 stud terminals offer secure, corrosion-free connections for consistent power delivery.
| Model Code (All 12V) | CCA A | Nominal Capacity (20 Hr Rate-Ah) | PHCA (5 sec.) | Reserve Capacity Minutes | Dimensions (L x H x W) mm | Weight kg | Terminal | Terminal Position | Operating Temperature Range |
|---|---|---|---|---|---|---|---|---|---|
| ODS-AGM8E (PC310) | 100A | 8Ah | 310 | 9 | 138 x 86 x 99 | 2.7 | M4 Female Thread | G | -40°C to +50°C |
| ODS-AGM15L (PC545) | 150A | 13Ah | 460 | 18 | 176 x 130 x 84 | 5.2 | M6 Female Thread | A | -40°C to +45°C |
| ODS-AGM16B (PC535) | 200A | 14Ah | 535 | 21 | 170 x 159 x 99 | 5.4 | M6 Female Thread | B | -40°C to +45°C |
| ODS-AGM16L (PC680) | 170A | 16Ah | 520 | 24 | 182 x 168 x 76 | 7.0 | M6 Female Thread | A | -40°C to +45°C |
| ODS-AGM16CL (PC625) | 220A | 18Ah | 540 | 26 | 170 x 99 x 177 | 6.0 | M6 Female Thread | A | -40°C to +45°C |
| ODS-AGM28L (PC925) | 330A | 28Ah | 900 | 48 | 167 x 126 x 176 | 10.8 | M6 Female Thread | A | -40°C to +45°C |
| ODS-AGM28 (PC925L) | 330A | 28Ah | 900 | 48 | 167 x 176 x 126 | 10.8 | M6 Female Thread | B | -40°C to +45°C |
| ODS-AGM30E (PC950) | 400A | 34Ah | 950 | 60 | 250 x 97 x 156 | 9.1 | M6 Stud | A | -40°C to +45°C |
| ODS-AGM42L (PC1200) | 540A | 42Ah | 1200 | 78 | 198 x 166 x 171 | 17.3 | M6 Female Thread | A | -40°C to +45°C |
| ODS-AGM42LA (PC1200T) | 540A | 42Ah | 1200 | 78 | 198 x 166 x 192 | 17.3 | SAE | A | -40°C to +45°C |
| ODS-AGM42 (PC1200L) | 540A | 42Ah | 1200 | 78 | 198 x 166 x 171 | 17.3 | M6 Female Thread | B | -40°C to +45°C |
| ODS-AGM40E (PC1100) | 500A | 45Ah | 1100 | 87 | 250 x 97 x 206 | 12.5 | M6 Stud | A | -40°C to +45°C |
| ODS-AGM70 (PC1700) | 810A | 68Ah | 1550 | 142 | 331 x 168 x 176 | 27.6 | M6 Female Thread | A | -40°C to +45°C |
| ODS-AGM70A (PC1700T) | 810A | 68Ah | 1550 | 142 | 331 x 168 x 197 | 27.6 | SAE | A | -40°C to +45°C |
🔧 Product Attributes
- Brand: EnerSys Odyssey
- Model Number: ODS-AGM30E (PC950)
- Voltage: 12V
- Capacity: 34Ah
- Technology Type: AGM (Absorbed Glass Mat) TPPL (Thin Plate Pure Lead)
- Warranty Period: Please consult with the retailer for warranty information.
- Country of Origin: Not specified in documentation.
