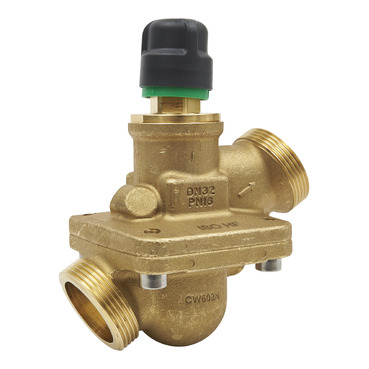

Schneider Electric VP229E-32BQHNT DN32 PIBCV Valve
Schneider Electric VP229E-32BQHNT is a two-way PN16 SpaceLogic pressure-independent balancing and control valve for 800–4,000 l/h (0.80–4.00 m³/h), with G 1 1/2A external thread and a fully adjustable maximum-flow setting.
Schneider Electric VP229E-32BQHNT combines differential-pressure control, balancing and modulating valve functions for higher-flow hydronic circuits. This DN32 high flow without T/P ports variant maintains stable hydronic control across its 800–4,000 l/h (0.80–4.00 m³/h) setting range. Its percentage scale supports repeatable commissioning, while the matched Schneider actuator platforms allow connection to an appropriate BMS control output.
Key features
Two-way pressure-independent balancing and control
PN16 pressure class
DN32 valve body
800–4,000 l/h (0.80–4.00 m³/h) adjustable flow range
G 1 1/2A external thread
Configuration without test-pressure ports
Percentage scale for maximum-flow setting
Technical specifications
Commercial Reference: VP229E-32BQHNT
Product Series: VP229E
Valve Type: Two-way PIBCV / PICV
Nominal Size: DN32
Pressure Class: PN16
Connection: G 1 1/2A external thread
Flow Range: 800–4,000 l/h (0.80–4.00 m³/h)
Flow Profile: high flow without T/P ports
Medium: Water and glycol mixtures up to the manufacturer-specified concentration
Compatible Actuator Platforms: MP130, MP120, SP90 and MP316
Applications
Chilled-water systems
Hot-water systems
Air-handling units
Hydronic balancing and control
BMS-controlled HVAC coils
Verified compatibility
Schneider Electric MP130, MP120, SP90 and MP316 actuator platforms
BMS control through a correctly selected compatible actuator
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
