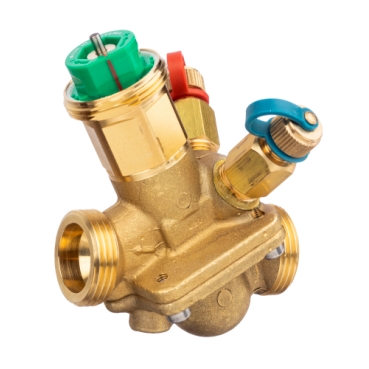

Schneider Electric VP228E-15BQL is a two-way PN16 SpaceLogic pressure-independent balancing and control valve for 55–275 l/h (0.06–0.28 m³/h), with G 3/4A external thread and a fully adjustable maximum-flow setting.
Schneider Electric VP228E-15BQL combines differential-pressure control, balancing and modulating valve functions for fan-coil and small coil circuits. This DN15 low flow variant maintains stable hydronic control across its 55–275 l/h (0.06–0.28 m³/h) setting range. Its percentage scale supports repeatable commissioning, while the matched Schneider actuator platforms allow connection to an appropriate BMS control output.
Key features
Two-way pressure-independent balancing and control
PN16 pressure class
DN15 valve body
55–275 l/h (0.06–0.28 m³/h) adjustable flow range
G 3/4A external thread
Test-pressure ports for commissioning
Percentage scale for maximum-flow setting
Technical specifications
Commercial Reference: VP228E-15BQL
Product Series: VP228E
Valve Type: Two-way PIBCV / PICV
Nominal Size: DN15
Pressure Class: PN16
Connection: G 3/4A external thread
Flow Range: 55–275 l/h (0.06–0.28 m³/h)
Flow Profile: low flow
Medium: Water and glycol mixtures up to the manufacturer-specified concentration
Compatible Actuator Platforms: SP90, MP120, MP130 and MP300-SR
Applications
Chilled-water systems
Hot-water systems
Fan-coil units
Hydronic balancing and control
BMS-controlled HVAC coils
Verified compatibility
Schneider Electric SP90, MP120, MP130 and MP300-SR actuator platforms
BMS control through a correctly selected compatible actuator
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
