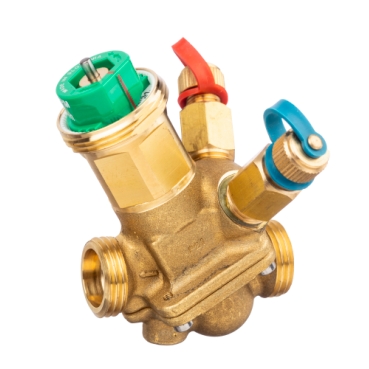

Schneider Electric VP228E-10BQL is a two-way PN16 SpaceLogic pressure-independent balancing and control valve for 30–150 l/h (0.03–0.15 m³/h), with G 1/2A external thread and a fully adjustable maximum-flow setting.
Schneider Electric VP228E-10BQL combines differential-pressure control, balancing and modulating valve functions for fine hydronic balancing at low loads. This DN10 low flow variant maintains stable hydronic control across its 30–150 l/h (0.03–0.15 m³/h) setting range. Its percentage scale supports repeatable commissioning, while the matched Schneider actuator platforms allow connection to an appropriate BMS control output.
Key features
Two-way pressure-independent balancing and control
PN16 pressure class
DN10 valve body
30–150 l/h (0.03–0.15 m³/h) adjustable flow range
G 1/2A external thread
Test-pressure ports for commissioning
Percentage scale for maximum-flow setting
Technical specifications
Commercial Reference: VP228E-10BQL
Product Series: VP228E
Valve Type: Two-way PIBCV / PICV
Nominal Size: DN10
Pressure Class: PN16
Connection: G 1/2A external thread
Flow Range: 30–150 l/h (0.03–0.15 m³/h)
Flow Profile: low flow
Medium: Water and glycol mixtures up to the manufacturer-specified concentration
Compatible Actuator Platforms: SP90, MP120, MP130 and MP300-SR
Applications
Chilled-water systems
Hot-water systems
Fan-coil units
Hydronic balancing and control
BMS-controlled HVAC coils
Verified compatibility
Schneider Electric SP90, MP120, MP130 and MP300-SR actuator platforms
BMS control through a correctly selected compatible actuator
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
