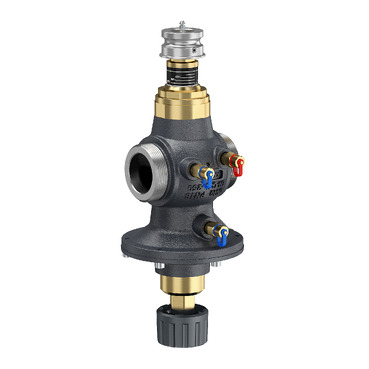

Schneider Electric VP220E-40CQS is a two-way PN16 SpaceLogic pressure-independent balancing and control valve for 3,000–7,500 l/h (3.0–7.5 m³/h), with G 2A external thread and a fully adjustable maximum-flow setting.
Schneider Electric VP220E-40CQS combines differential-pressure control, balancing and modulating valve functions for air-handling and plant-room branches. This DN40 standard flow variant maintains stable hydronic control across its 3,000–7,500 l/h (3.0–7.5 m³/h) setting range. Its percentage scale supports repeatable commissioning, while the matched Schneider actuator platforms allow connection to an appropriate BMS control output.
Key features
Two-way pressure-independent balancing and control
PN16 pressure class
DN40 valve body
3,000–7,500 l/h (3.0–7.5 m³/h) adjustable flow range
G 2A external thread
Test-pressure ports for commissioning
Percentage scale for maximum-flow setting
Technical specifications
Commercial Reference: VP220E-40CQS
Product Series: VP220E
Valve Type: Two-way PIBCV / PICV
Nominal Size: DN40
Pressure Class: PN16
Connection: G 2A external thread
Flow Range: 3,000–7,500 l/h (3.0–7.5 m³/h)
Flow Profile: standard flow
Medium: Water and glycol mixtures up to the manufacturer-specified concentration
Compatible Actuator Platforms: MP500C and MP500C-SR
Applications
Chilled-water systems
Hot-water systems
Air-handling units
Hydronic balancing and control
BMS-controlled HVAC coils
Verified compatibility
Schneider Electric MP500C and MP500C-SR actuator platforms
BMS control through a correctly selected compatible actuator
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
