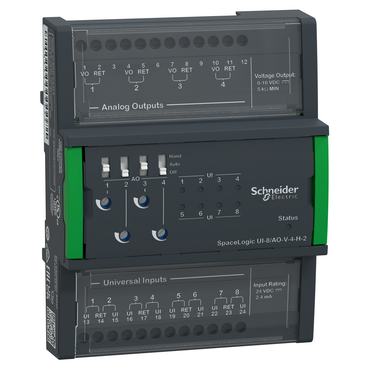

Schneider Electric SXWUI8V4H10002 Central I/O Module
Schneider Electric SXWUI8V4H10002 is a 12-channel SpaceLogic Central I/O module with 8 universal inputs and 4 analog voltage outputs, designed for direct expansion of a SpaceLogic AS-P server.
Schneider Electric SXWUI8V4H10002 adds mixed input and output capacity for voltage control of modulating field devices in plant-room and equipment-room applications. Eight universal inputs collect compatible sensor and status points, while 4 analog voltage outputs serve the selected control functions. The module connects to the AS-P common bus, supports hot connection and replacement on its terminal base, and uses automatic addressing to reduce commissioning work. Integrated Hand/Off/Auto switches provide local output override for testing and service.
Key features
12 total I/O channels
8 universal inputs
4 analog voltage outputs
Direct common-bus connection to SpaceLogic AS-P
Hot-connectable and hot-swappable design
Automatic module addressing
Up to 32 Central I/O modules per AS-P
Hand/Off/Auto output override switches
Technical specifications
Commercial Reference: SXWUI8V4H10002
Type Designation: UI-8/AO-V-4-H-2
Product Type: SpaceLogic Central I/O expansion module
Total Channels: 12
Universal Inputs: 8
Outputs: 4 analog voltage outputs
Output Point Type: Analog voltage
Manual Override: Hand/Off/Auto switches included
Server Connection: Direct connection to SpaceLogic AS-P built-in I/O bus
Module Capacity: Up to 32 modules per AS-P
Terminal Base: SpaceLogic Central I/O terminal base required
Serviceability: Hot-connectable and hot-swappable
Applications
Air-handling unit control
Chiller and boiler plant monitoring
Pump and fan control
Mechanical equipment rooms
Centralized BMS I/O expansion
Verified compatibility
SpaceLogic AS-P Automation Server
EcoStruxure Building Operation
SpaceLogic Central I/O terminal base
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
