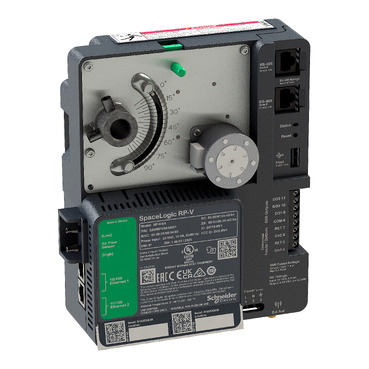

Schneider Electric SpaceLogic RP-V-5A VAV Room Controller
A BACnet/IP VAV controller integrating a damper actuator and calibrated airflow sensor, with two universal inputs and three digital outputs for room ventilation control.
Schneider Electric SXWRPV5A10001 is available from EnergyX Egypt for technically reviewed building-management projects and integration support.
SpaceLogic RP-V overview
The RP-V-5A packages the controller, damper actuator and airflow sensor for streamlined VAV installation. Its two universal inputs and three digital outputs support zone sensing and controlled equipment, while dual-port Ethernet and integration with SpaceLogic RP modules extend the room solution within EcoStruxure Building Operation.
Key features
Integrated damper actuator
Integrated factory-calibrated airflow sensor
Two universal inputs
Three digital outputs
BACnet/IP dual-port Ethernet
Room bus expansion support
Technical specifications
Product Type: VAV room controller
Io Points: 5
Universal Inputs: 2
Digital Outputs: 3
Protocol: BACnet/IP
Network: Dual-port Ethernet
Damper Actuator: Integrated
Airflow Sensor: Integrated, factory calibrated
Applications
VAV boxes
Demand-controlled ventilation
Meeting rooms
Commercial building zones
Verified compatibility
EcoStruxure Building Operation
SpaceLogic AS-P
SpaceLogic AS-B
SpaceLogic RP expansion modules
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
