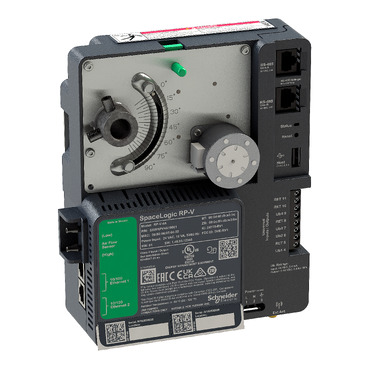

Schneider Electric SpaceLogic RP-V-4A VAV Room Controller
A compact BACnet/IP VAV room controller with four universal inputs, an integrated damper actuator and factory-calibrated airflow sensing for demand-controlled ventilation.
Schneider Electric SXWRPV4A10001 is available from EnergyX Egypt for technically reviewed building-management projects and integration support.
SpaceLogic RP-V overview
The SpaceLogic RP-V-4A combines VAV control, damper positioning and airflow measurement in one room-purpose device. Four universal inputs accommodate the engineered zone signals, and dual-port BACnet/IP networking supports standalone operation or integration into EcoStruxure Building Operation for coordinated ventilation and comfort control.
Key features
Integrated damper actuator
Integrated factory-calibrated airflow sensor
BACnet/IP with dual-port Ethernet
Four universal inputs
Native EcoStruxure Building Operation support
Technical specifications
Product Type: VAV room controller
Io Points: 4
Universal Inputs: 4
Protocol: BACnet/IP
Network: Dual-port Ethernet
Damper Actuator: Integrated
Airflow Sensor: Integrated, factory calibrated
Applications
VAV boxes
Demand-controlled ventilation
Office zones
Commercial buildings
Verified compatibility
EcoStruxure Building Operation
SpaceLogic AS-P
SpaceLogic AS-B
SpaceLogic RP expansion modules
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
