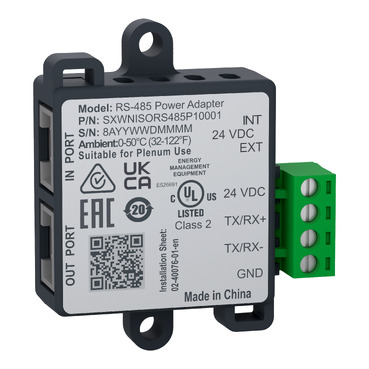

Schneider Electric SpaceLogic Non-Isolated RS-485 and Power Adapter
A non-isolated SpaceLogic adapter that supplies downstream devices and provides RJ45 or removable-terminal RS-485 connections for supported RP and MP controller networks.
Schneider Electric SXWNISORS485P10001 is available from EnergyX Egypt for technically reviewed building-management projects and integration support.
SpaceLogic RS-485 Adapters overview
This RS-485 and power adapter extends practical room and plant-controller wiring by delivering power to downstream devices and providing flexible connector options. It can increase the supported number of Connected Room Solution modules, sensors and Modbus devices when applied according to Schneider design guidance.
Key features
Provides downstream device power
Supports RP and MP controller installations
RJ45 and screw-terminal connection options
Four-position removable terminal
Extends supported CRS and Modbus device arrangements
Technical specifications
Product Type: Non-isolated RS-485 and power adapter
Connections: RJ45-to-RJ45 or RJ45-to-screw terminal
Terminal: 4-position removable screw terminal
Network: BACnet MS/TP or supported RS-485 network
Power Distribution: Downstream device power
Applications
Controller network expansion
Room sensor networks
Modbus device connection
BACnet MS/TP wiring
Verified compatibility
SpaceLogic RP controllers
SpaceLogic MP controllers
Connected Room Solution modules
Supported Modbus devices
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
