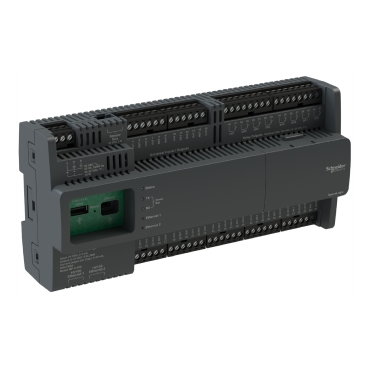

Schneider Electric SpaceLogic MP-C-36A Plant Controller
A high-capacity 36-point Schneider Electric SXWMPC36A10001 MP-C BACnet/IP controller with eight Uc universal I/O, twenty Ub universal I/O and eight Form A relay outputs for larger HVAC systems.
Schneider Electric SXWMPC36A10001 MP-C-36A provides the largest onboard point count in the standard MP-C family. Its combination of Uc and Ub universal points supports diverse analogue and digital field signals, while eight Form A relay outputs handle equipment switching. It is intended for larger plant applications that benefit from BACnet/IP networking and native EcoStruxure engineering tools.
Key features
BACnet/IP plant-room controller with dual-port Ethernet
Freely programmable for HVAC control applications
Supports commissioning through EcoStruxure Building Commission
Sensor bus integration for SpaceLogic Living Space Sensors
Optional SpaceLogic MP-C display support
Compatible with EcoStruxure Building Operation
Technical specifications
Product Type: Plant-room controller
Io Points: 36
Universal Io Uc: 8
Universal Io Ub: 20
Form ARelay Outputs: 8
Protocol: BACnet/IP
Network: Dual-port Ethernet
Applications
Large air-handling units
Chilled-water systems
Boiler plants
Central plant equipment
Verified compatibility
EcoStruxure Building Operation
SpaceLogic AS-P
SpaceLogic AS-B
SpaceLogic IP-IO
SpaceLogic Living Space Sensors
Use the official Schneider Electric documents linked on this page and confirm the final point schedule, power requirements and project compatibility before ordering.
