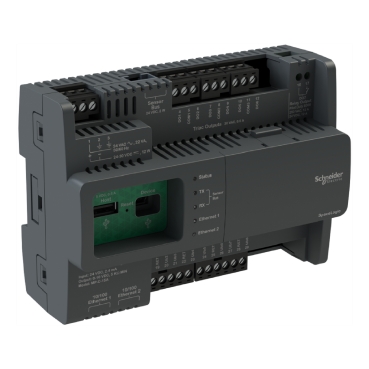

Schneider Electric SpaceLogic MP-C-18B Plant Controller
An 18-point SpaceLogic MP-C BACnet/IP controller with ten universal I/O points and eight digital triac outputs, suited to programmable HVAC equipment control in plant rooms.
Schneider Electric SXWMPC18B10001 is available from EnergyX Egypt for technically reviewed building-management projects and integration support.
SpaceLogic MP-C overview
The SpaceLogic MP-C-18B is designed for plant applications with a strong requirement for digital triac switching. Ten universal I/O points support configurable sensing and control, while eight triac outputs operate connected loads according to the engineered application. The controller works as a standalone BACnet/IP device or within EcoStruxure Building Operation.
Key features
BACnet/IP plant-room controller with dual-port Ethernet
Freely programmable for HVAC control applications
Supports commissioning through EcoStruxure Building Commission
Sensor bus integration for SpaceLogic Living Space Sensors
Optional SpaceLogic MP-C display support
Compatible with EcoStruxure Building Operation
Technical specifications
Product Type: Plant-room controller
Io Points: 18
Universal Io Ub: 10
Digital Triac Outputs: 8
Protocol: BACnet/IP
Network: Dual-port Ethernet
Dimensions: 110 × 153 × 64 mm
Typical Power Consumption: 7 W
Applications
Air-handling units
Exhaust systems
Unit ventilators
Heat pumps
Verified compatibility
EcoStruxure Building Operation
SpaceLogic AS-P
SpaceLogic AS-B
SpaceLogic Living Space Sensors
Use the official Schneider Electric documents linked on this page and confirm the final point schedule, power requirements and project compatibility before ordering.
