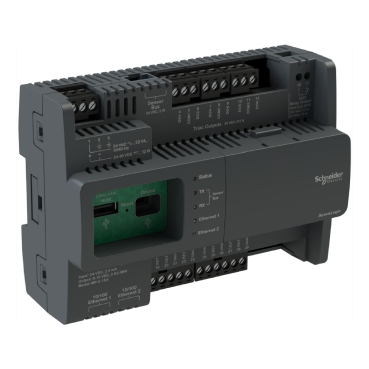

Schneider Electric SpaceLogic MP-C-15A Plant Controller
A freely programmable 15-point SpaceLogic MP-C BACnet/IP controller for compact HVAC and plant-room applications, with native integration into EcoStruxure Building Operation.
Schneider Electric SXWMPC15A10001 is available from EnergyX Egypt for technically reviewed building-management projects and integration support.
SpaceLogic MP-C overview
The SpaceLogic MP-C-15A is the compact 15-I/O member of the standard MP-C plant-controller family. It provides programmable BACnet/IP control for mechanical equipment where a smaller onboard point count is appropriate. The controller can operate independently or as part of an EcoStruxure Building Operation system supervised by a SpaceLogic server.
Key features
BACnet/IP plant-room controller with dual-port Ethernet
Freely programmable for HVAC control applications
Supports commissioning through EcoStruxure Building Commission
Sensor bus integration for SpaceLogic Living Space Sensors
Optional SpaceLogic MP-C display support
Compatible with EcoStruxure Building Operation
Technical specifications
Product Type: Plant-room controller
Io Points: 15
Protocol: BACnet/IP
Network: Dual-port Ethernet
Mounting: DIN rail
Operating Temperature: 0 to 50 °C normal orientation; -40 to 60 °C rooftop orientation
Applications
Compact air-handling units
Heat pumps
Packaged HVAC units
Plant-room equipment
Verified compatibility
EcoStruxure Building Operation
SpaceLogic AS-P
SpaceLogic AS-B
SpaceLogic Living Space Sensors
Use the official Schneider Electric documents linked on this page and confirm the final point schedule, power requirements and project compatibility before ordering.
