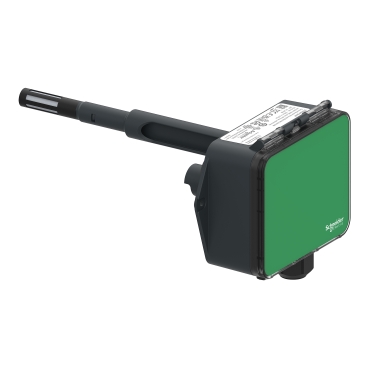

Schneider Electric SpaceLogic SCD2 Duct CO2 Humidity and Temperature Sensor
A duct-mounted SpaceLogic SCD2 air-quality sensor combining CO2, humidity and temperature measurements with analogue integration and field-replaceable humidity and temperature modules.
Schneider Electric SCD2XA2HCX is available from EnergyX Egypt for technically reviewed building-management projects and integration support.
SpaceLogic SCD2 Series overview
The SCD2XA2HCX monitors air conditions within HVAC ductwork so ventilation and plant controls can respond to actual indoor-air demand. Its combined CO2, humidity and temperature measurements reduce the need for separate devices, while replaceable modules simplify planned maintenance.
Key features
Combined CO2, humidity and temperature sensing
Duct-mount configuration
Analogue system integration
Field-replaceable humidity module
Field-replaceable temperature module
Technical specifications
Sensor Type: Duct air-quality multi-sensor
Measurements: CO2, relative humidity and temperature
Output: Analogue
Co2Range: Selectable up to 5000 ppm
Humidity Range: 0 to 100% RH
Temperature Range: -40 to 60 °C
Applications
Air-handling units
Demand-controlled ventilation
Hospitals
Laboratories
Commercial HVAC
Verified compatibility
BMS analogue inputs
EcoStruxure Building Operation through compatible controllers
Review the official Schneider Electric source linked on this page and confirm the final controller, power, network and project requirements before ordering.
